I want to set navigation so that the water area isn’t movable and only the bridge-stone is movable

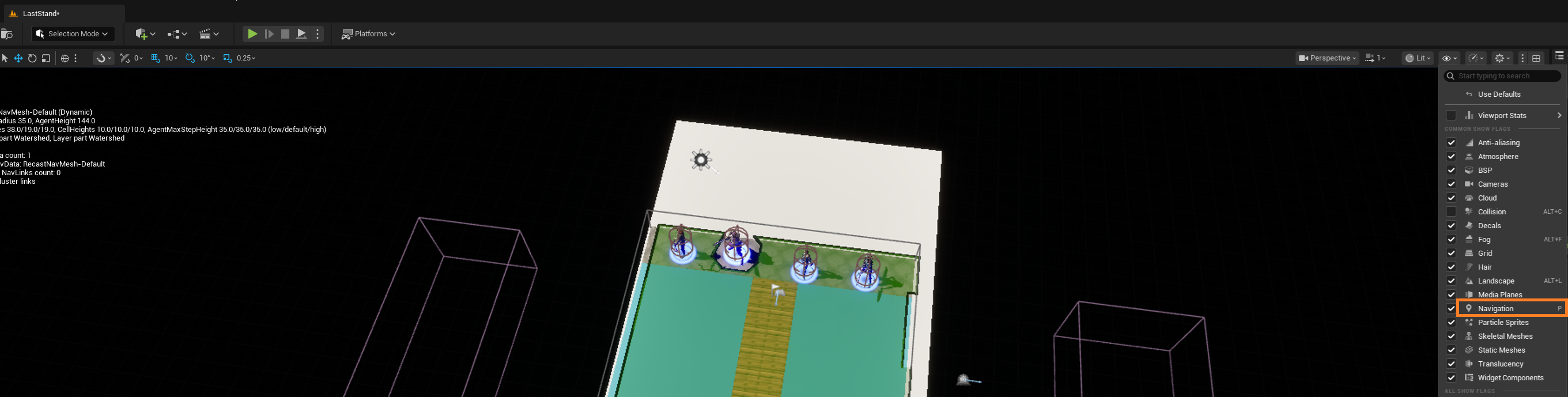

Turn on “Navigation” to see the green nav visual.

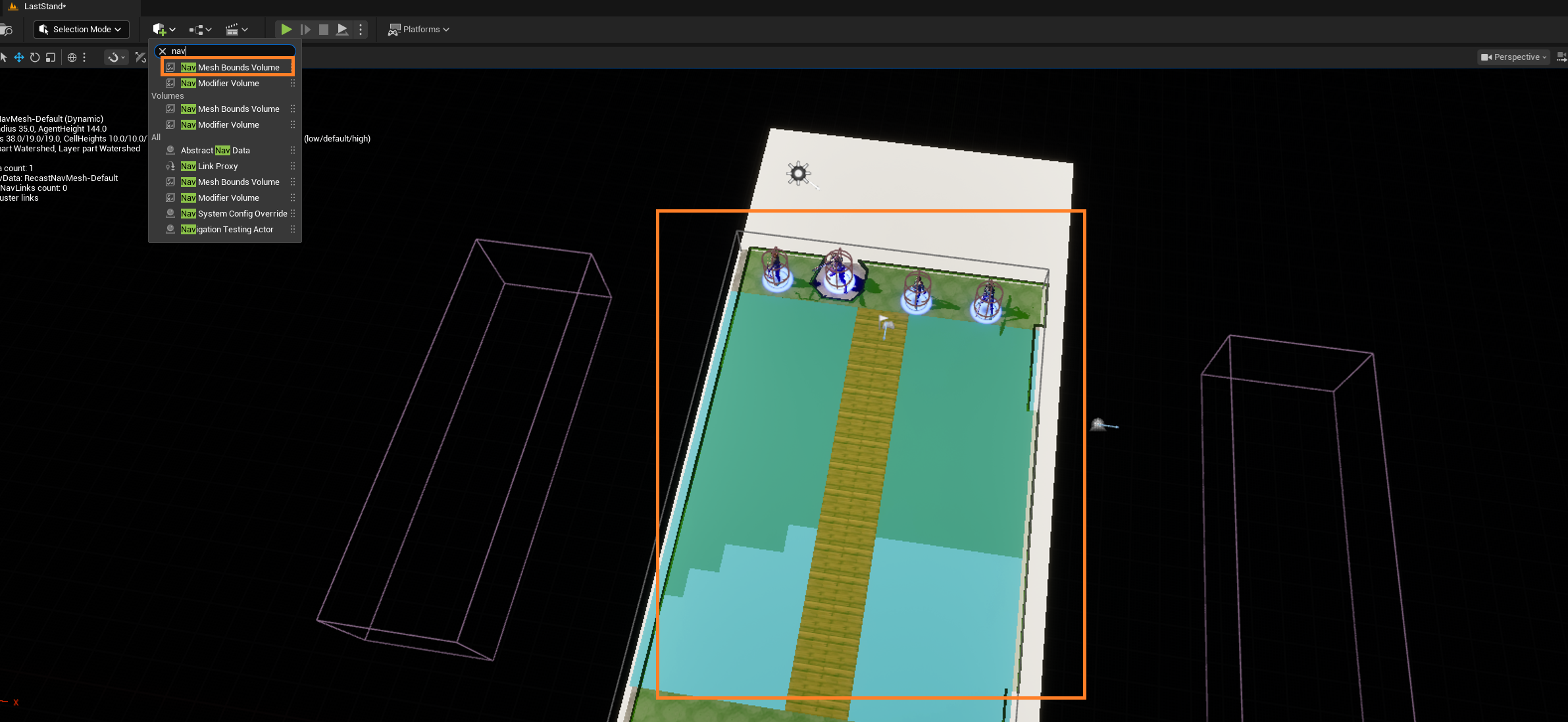

1. Create a default nav volume surrounding the whole map.

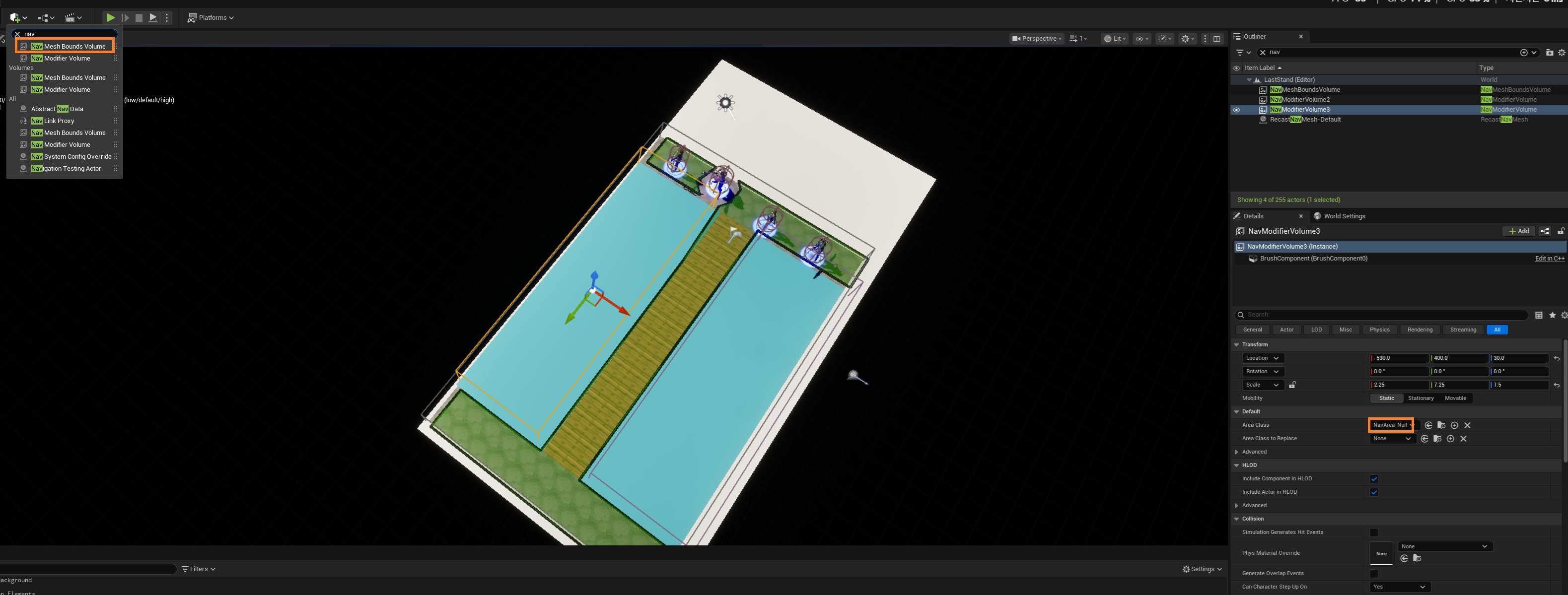

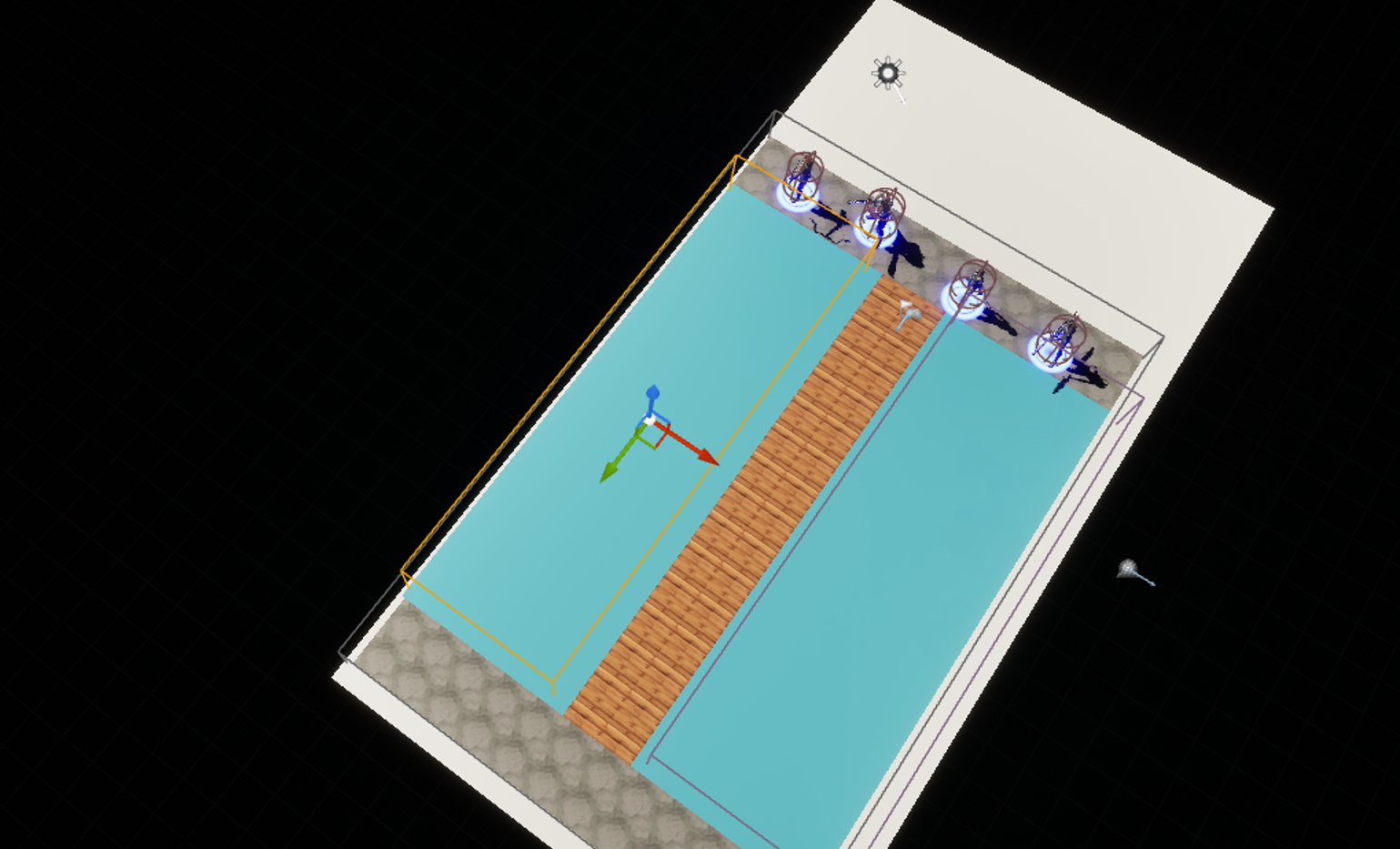

2. Create a null nav volume on the water
3. Create an AI Controller That Posseses the Units
- Needs
AIModulein Build.cs
// Fill out your copyright notice in the Description page of Project Settings.
#pragma once
#include "CoreMinimal.h"
#include "Runtime/AIModule/Classes/AIController.h"
#include "TacticsUnitAIController.generated.h"
UCLASS()
class FORBIDDENTACTICS_API ATacticsUnitAIController : public AAIController
{
GENERATED_BODY()
public:
// Sets default values for this actor's properties
ATacticsUnitAIController();
protected:
// Called when the game starts or when spawned
virtual void BeginPlay() override;
public:
// Called every frame
virtual void Tick(float DeltaTime) override;
};
- Assign it to each unit.

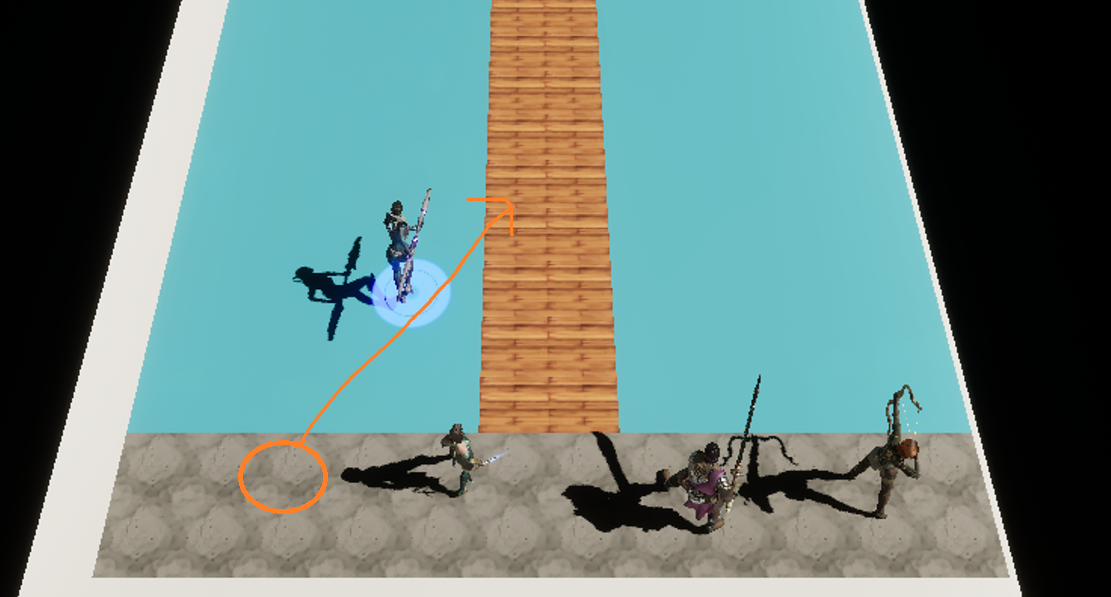

There’s one problem: The units get blocked when I click a null area, but they pass the water when I make them move to a target that has water between the line directory
It’s probably because I gave the units vector movement instead of AI navigation.
- We need to change
void ATacticsBaseUnit::Tick(float DeltaTime)
{
Super::Tick(DeltaTime);
UpdateSpeed();
if (HasTarget) {
if (ArrivedAtTarget()) {
HasTarget = false;
FloatingPawnMovement->MaxSpeed = 0.0f;
}
AddMovementInput(TargetLocation - GetActorLocation(), CharacterSpeed);
FloatingPawnMovement->MaxSpeed = CharacterSpeed;
}
}
to AIController APIs
void ATacticsBaseUnit::MoveToTarget(const FVector& TargetLocation)
{
AAIController* Controller = Cast<AAIController>(GetController());
CHECK(Controller);
FAIMoveRequest Req;
Req.SetGoalLocation(TargetLocation);
Req.SetAcceptanceRadius(10.0f);
Controller->MoveTo(Req);
}
